Photovoltaic PV Cable Solar Cable H1z2z2-k Copper Core XLPO Jacket 6mm2 4mm2 1500v
APPLICATION
The H1Z2Z2-K photovoltaic cable with copper core and XLPO jacket (6mm²/4mm², 1500V) is specifically designed for solar energy systems. It connects photovoltaic panels to inverters and grids, ensuring efficient power transmission in outdoor environments.
Key applications include:
- DC connections: Between solar panels, junction boxes, and combiner boxes.
- Harsh environments: Resistant to UV, extreme temperatures (-40°C to +90°C), and mechanical stress.
- Safety-critical installations: Halogen-free and flame-retardant properties make it suitable for rooftops and large-scale solar farms.
This cable meets international standards (e.g., EN 50618) and is ideal for both residential and utility-scale solar projects.
CONSTRUCTION
- Conductor: Class 5 tinned copper conductors
- Insulation: Halogen free flame-retardant insulation material for solar cables
- Outer sheath:Halogen free flame retardant sheath material for solar cables
CHARACTERISTIC
- Voltage Rating: Uo/U:1.0/1.0kV Um:1.5kV
- Maximum operating temperature of conductor:+120℃
- Operating ambient temperature: -40℃~+90℃
- Cable laying temperature:Not less than -25℃
- Minimum Bending Radius: 6D
SPECIFICATIONS
|
Cross section(mm²)
|
Conductor Construction(no/mm)
|
Conductor Stranded OD.max(mm)
|
Cable OD.(mm)
|
Approximate weight of cable
kg/km
|
Max Conductor Resistance(Ω/km,20°C)
|
|
1×1.5
|
48/0.20
|
1.58
|
4.8
|
35
|
13.7
|
|
1×2.5
|
77/0.20
|
2.02
|
5.2
|
47
|
8.21
|
|
1×4
|
56/0.285
|
2.46
|
5.7
|
64
|
5.09
|
|
1×6
|
84/0.285
|
3.01
|
6.3
|
86
|
3.39
|
|
1×10
|
77/0.40
|
4.1
|
7.2
|
128
|
1.95
|
|
1×16
|
7×17/0.40
|
5.5
|
8.9
|
196
|
1.24
|
|
1×25
|
7×27/0.40
|
6.7
|
10.7
|
299
|
0.795
|
|
1×35
|
7×38/0.40
|
8.2
|
12.4
|
407
|
0.565
|
|
1×50
|
19×20/0.40
|
10.0
|
14.6
|
571
|
0.393
|
|
1×70
|
19×28/0.40
|
11.6
|
16.4
|
773
|
0.277
|
|
1×95
|
19×38/0.40
|
13.5
|
18.5
|
1024
|
0.210
|
|
1×120
|
24×38/0.40
|
14.4
|
19.8
|
1266
|
0.164
|
|
1×150
|
30×38/0.40
|
16.2
|
22.2
|
1584
|
0.132
|
|
1×185
|
37×38/0.40
|
18.2
|
25.0
|
1967
|
0.108
|
|
1×240
|
48×38/0.40
|
20.6
|
27.8
|
2518
|
0.0817
|

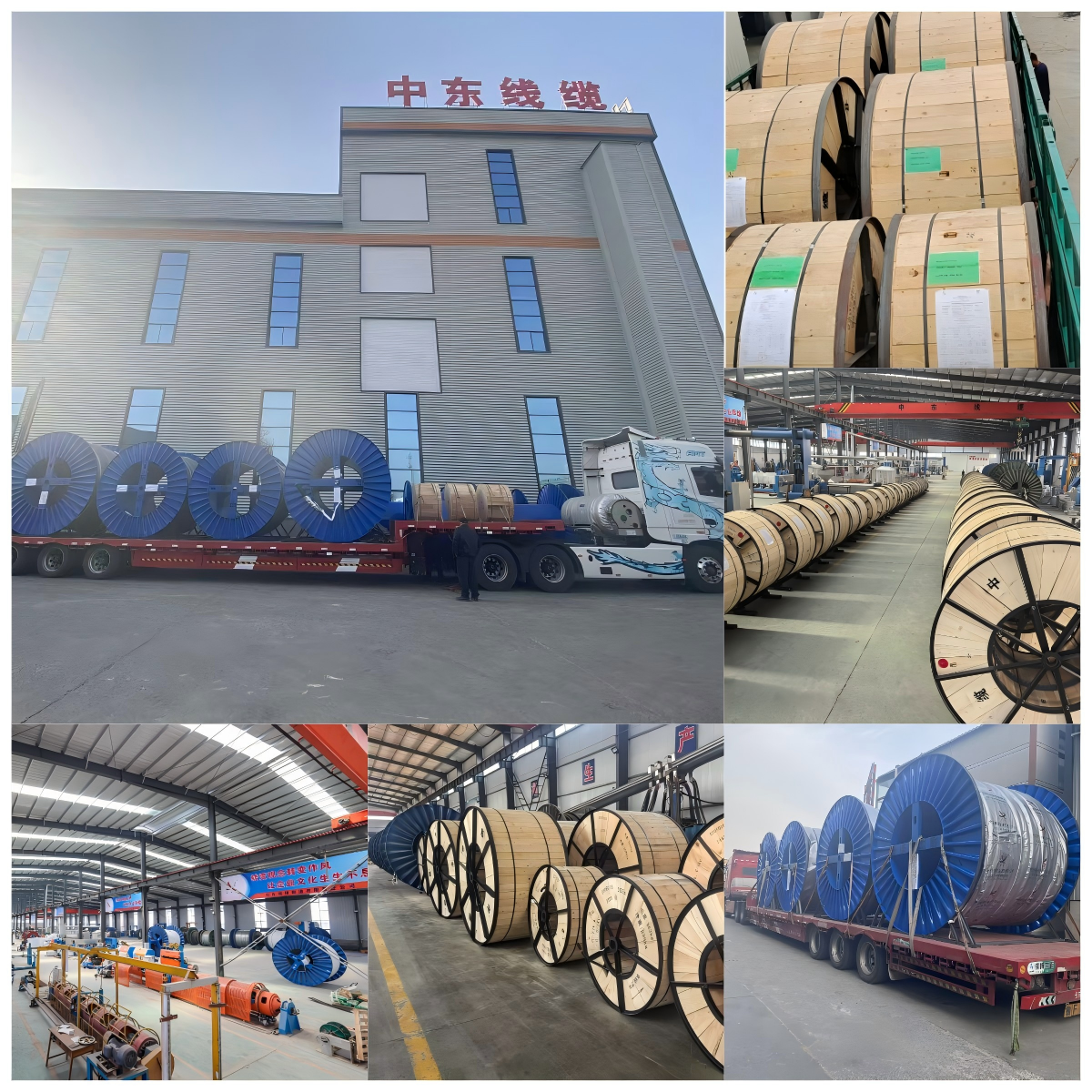

OUR FACTORY
PROJECTS
PARTNER
DELIVERY
FAQ
What certifications do your photovoltaic cables comply with?
Our H1Z2Z2-K solar cables meet international standards such as EN 50618 (Europe), TÜV, and UL, ensuring safety and performance in solar systems.
Can your cables withstand extreme temperatures?
Yes, our XLPO-jacketed cables operate reliably from -40°C to +90°C, suitable for deserts and cold climates.
What customization options do you offer for project-specific needs?
We can tailor cable lengths, colors, and connectors based on customer requirements for seamless integration.
What is the lead time for bulk orders?
Standard production takes 15–20 days; expedited options are available for urgent projects.
Do you provide technical support for installation?
Yes, our team offers guidance on routing, bending radius, and compliance with local electrical codes.
How are your cables tested for quality assurance?
Each batch undergoes rigorous tests including insulation resistance, voltage withstand, and mechanical stress simulation.
