0.6/1kV XLPE Insulated Power Cable N2XY N2X2Y EAC Certified Flame-retardant Power Cable
APPLICATION
- Fixed installations in power distribution networks, industrial plants, and urban infrastructure
- Flame-retardant applications requiring compliance with IEC 60331 and EAC safety standards
- Indoor/outdoor use in cable trunking, underground ducts, or direct burial, withstanding temperatures from -60°C to +200°C
- EMC protection in industrial environments due to its copper tape screening
CONSUCTRUCTION
- Conductor:Class 2 stranded Copper conductor
- Insulation:Cross-Linked Polyethylene(XLPE)
- Outer sheath:Polyvinyl chloride (PVC)
CHARACTERISTIC
- Voltage Rating Uo/U: 0.6/1kV
- Maximum operating temperature of conductor:+90℃
- Operating ambient temperature: -20℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius:Single core:20D Multicire: 15D
Laying method
Pipe laying, shallow trench laying, cable trench laying, tunnel laying, interlayer laying, supported overhead laying and suspended overhead laying etc.
SPECIFICATION
|
Specs
mm²
|
Conductor diameter
mm
|
Nominal thickness of insulation
mm
|
Nominal thickness of sheath
mm
|
Approximate outer diameter of cable
mm
|
Approximate cable weight
kg/km
|
|
4×1.5
|
1.38
|
0.7
|
1.8
|
11.2
|
170
|
|
4×2.5
|
1.78
|
0.7
|
1.8
|
12.2
|
222
|
|
4×4
|
2.25
|
0.7
|
1.8
|
13.3
|
293
|
|
4×6
|
2.76
|
0.7
|
1.8
|
14.5
|
386
|
|
4×10
|
4.0
|
0.7
|
1.8
|
17.5
|
562
|
|
4×16
|
5.0
|
0.7
|
1.8
|
19.9
|
813
|
|
4×25
|
6.1
|
0.9
|
1.8
|
23.6
|
1222
|
|
4×35
|
7.2
|
0.9
|
1.8
|
26.4
|
1638
|
|
4×50
|
8.4
|
1.0
|
1.9
|
30.0
|
2166
|
|
4×70
|
10.0
|
1.1
|
2.0
|
34.6
|
3048
|
|
4×95
|
12.0
|
1.1
|
2.1
|
39.7
|
4135
|
|
4×120
|
13.0
|
1.2
|
2.3
|
43.0
|
5145
|
|
4×150
|
14.9
|
1.4
|
2.4
|
48.8
|
6376
|
|
4×185
|
16.5
|
1.6
|
2.6
|
54.1
|
7911
|
|
4×240
|
18.4
|
1.7
|
2.8
|
59.6
|
10243
|
|
4×300
|
21.0
|
1.8
|
3.0
|
66.8
|
12779
|
|
4×400
|
23.4
|
2.0
|
3.3
|
74.2
|
16325
|
CONTACTR US FOR MORE VOLATAGE

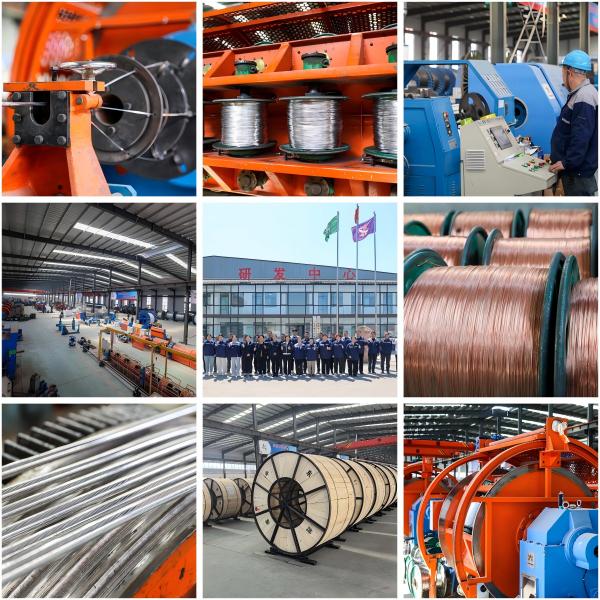

ABOUT US

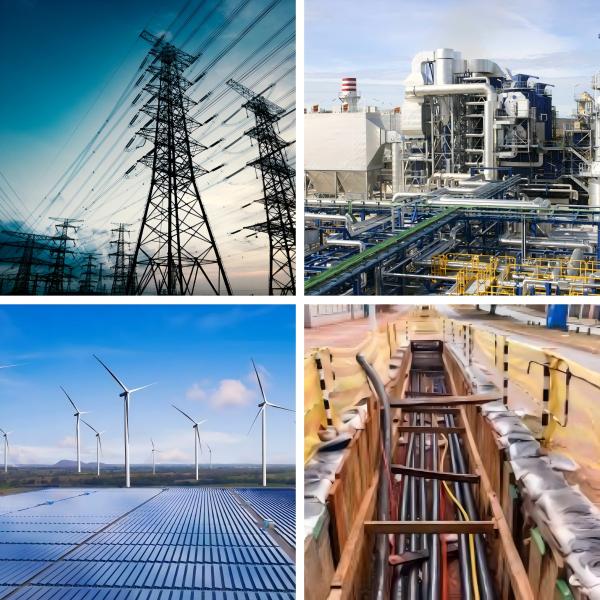

APPLICATION
WHY CHOOSE US
PARTNER
FAQ
What are the key applications of this cable?
Designed for fixed installations in power distribution networks, industrial plants, and urban infrastructure, ensuring reliable energy transmission in high-risk environments.
Why is the XLPE insulation important?
Cross-linked polyethylene (XLPE) provides superior thermal resistance, mechanical strength, and durability, making it ideal for demanding industrial settings.
What does EAC certification signify?
EAC certification confirms compliance with Eurasian Economic Union safety standards, ensuring the cable meets rigorous quality and performance requirements for regional markets.
How does the flame-retardant feature enhance safety?
The cable reduces fire spread and smoke emission, meeting flame-retardant standards like IEC 60331, which is critical for buildings, tunnels, and public spaces.
Where should the N2XY/N2X2Y cable be installed?
Versatile for use in cable trunking, underground ducts, or direct burial, offering protection against moisture, abrasion, and environmental stress.
How does this cable compare to non-flame-retardant alternatives?
Offers enhanced safety by minimizing fire hazards, making it preferred for critical infrastructure, while standard cables may lack these protective features.
