Power Distribution Industrial MV Power Cable 26/35kV AL/XLPE/CTS/STA/PVC YJLV22 NA2XSEBY

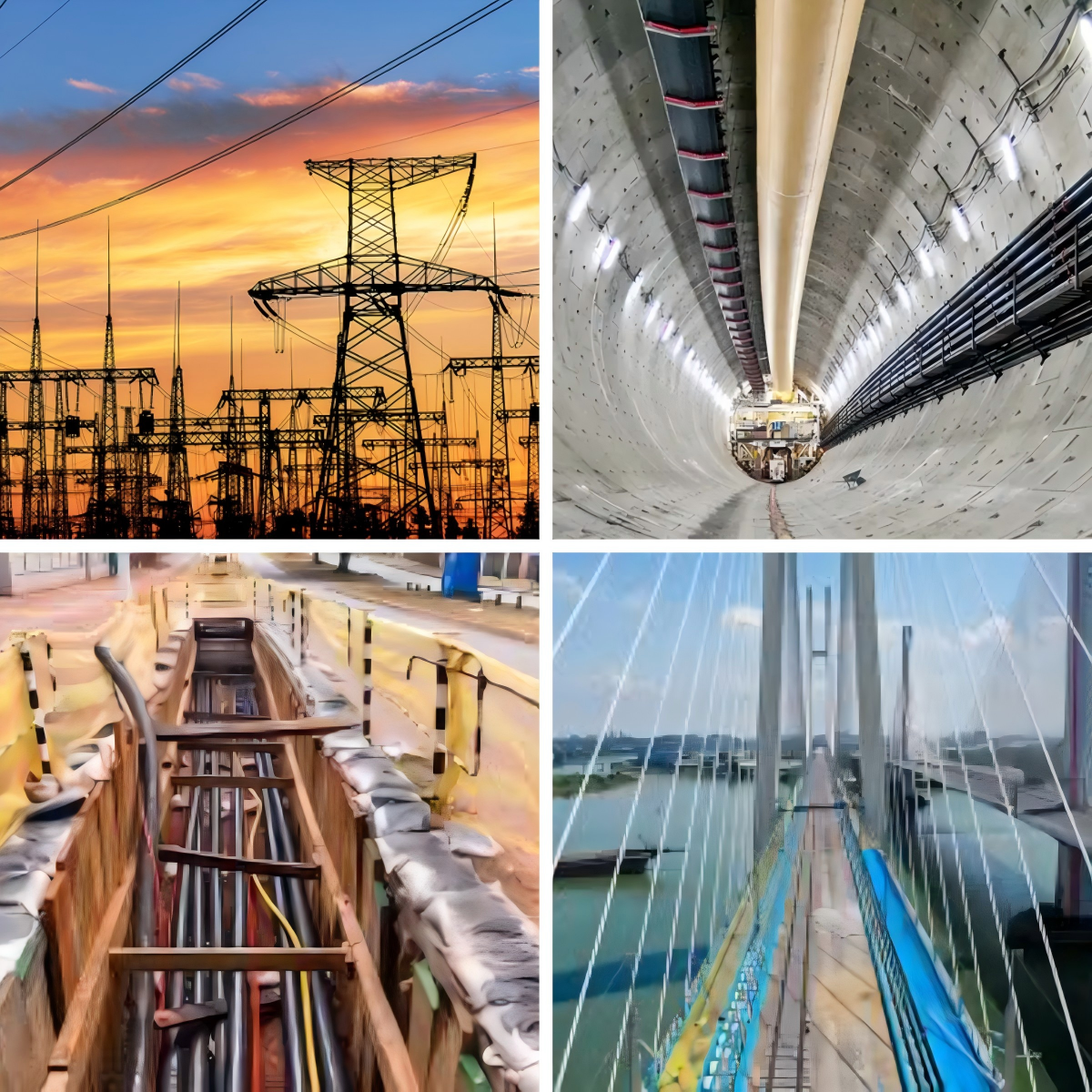

Application
1. Underground and outdoor power networks
2. Cable duct installations
3. Industrial substations
4. Commercial power distribution
5. Renewable energy systems
6. Mining and heavy industry
7. Telecommunications infrastructure
8. Smart grid deployments
Construction
Conductor:Class 2 Aluminium conductor
Conductor:Semi-conductive shield
Insulation:Cross-Linked Polyethylene(XLPE)
Insulation shield:Semi-conductive shield
Metal shielding layer:Copper tape: 50-400mm Copper Wire: 500-800mm2
Binder tape:Non-woven fabrics
Isolation sleeve:Polyvinyl chloride(PVC)
Armour:Non-magnetic steel Tape
Outer sheath:Polyvinyl chloride (PVC)
Parameter
|
Specs
mm²
|
Conductor diameter
mm
|
Nominal thickness of insulation
mm
|
Outside diameter of insulation
±1.0mm
|
Nominal thickness of sheath
mm
|
Approximate outer diameter of cable
mm
|
Approximate cable weight
kg/km
|
|
1×50
|
8.2
|
10.5
|
31.6
|
2.3
|
44.1
|
2354
|
|
1×70
|
100
|
10.5
|
33.2
|
2.4
|
45.9
|
2551
|
|
1×95
|
11.6
|
10.5
|
35.0
|
2.4
|
47.7
|
2755
|
|
1×120
|
13.0
|
10.5
|
36.4
|
2.5
|
49.4
|
2953
|
|
1×150
|
14.4
|
10.5
|
37.8
|
2.5
|
51.0
|
3166
|
|
1×185
|
16.1
|
10.5
|
39.6
|
2.6
|
53.0
|
3425
|
|
1×240
|
18.4
|
10.5
|
41.8
|
2.6
|
55.2
|
3744
|
|
1×300
|
20.6
|
10.5
|
44.0
|
2.7
|
57.9
|
4135
|
|
1×400
|
23.4
|
10.5
|
46.8
|
2.8
|
60.9
|
4654
|
|
1×500
|
26.6
|
10.5
|
50.6
|
3.0
|
67.5
|
5647
|
|
1×630
|
30.0
|
10.5
|
54.0
|
3.1
|
71.3
|
6335
|
|
1×800
|
34.0
|
10.5
|
58.0
|
3.2
|
75.4
|
7146
|
