SPECIFICATIONS
|
Nominal
cross-
sectional
area of
conductor
|
Nominal
diameter of
conductor
|
Nominal
thickness
of XLPE
insulation
|
Metallic
Screening
|
Nominal
diameter of
aluminium
wire
|
Nominal
thickness of
PVC sheath
|
Approximate
overall
diameter of
cable
|
Approximate weight of cable
|
|
Approximate
thickness of
copper tape
|
Copper
|
Aluminium
|
|
mm²
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
Kg/Km
|
Kg/Km
|
|
50
70
95
|
8.1
9.7
11.5
|
3.4
3.4
3.4
|
0.1
0.1
0.1
|
16
1.6
16
|
1.8
1.9
2.0
|
27
29
31
|
1261
1541
1874
|
963
1109
1276
|
|
120
150
185
|
12.9
14.3
16.1
|
3.4
3.4
3.4
|
0.1
0.1
0.1
|
2.0
2.0
2.0
|
2.0
2.1
2.1
|
33
35
37
|
2247
2581
3001
|
1491
1652
1837
|
|
240
300
400
|
18.4
20.6
23.3
|
3.4
3.4
3.4
|
0.1
0.1
0.1
|
2.0
2.0
2.5
|
2.2
2.3
2.4
|
39
42
46
|
3688
4382
5524
|
2142
2443
3003
|
|
500
630
800
|
26.2
29.8
33.7
|
3.4
3.4
3.4
|
0.1
0.1
0.1
|
2.5
2.5
2.5
|
2.5
2.6
2.8
|
48
53
58
|
6590
8201
10132
|
3464
4145
4944
|
Contact us for more details

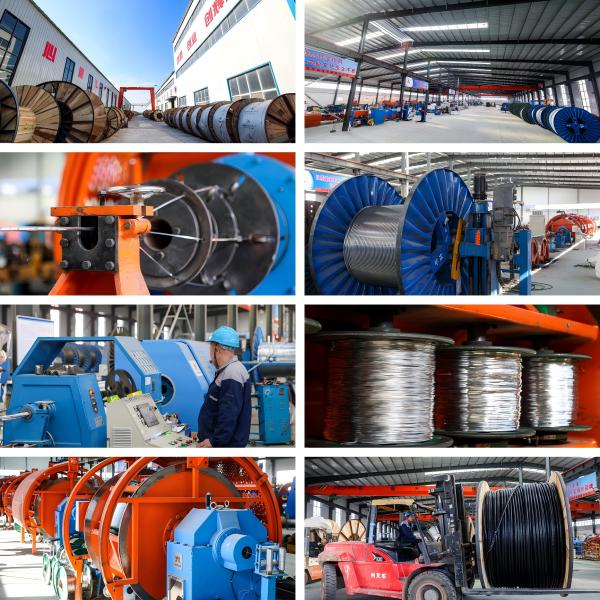

OUR FACTORY
PROJECTS
PARTNERS
WHY US
FAQ
Where is this cable typically used?
Ideal for industrial plants, oil refineries, chemical facilities, and urban infrastructure where fire resistance and mechanical durability are critical.
What voltage rating does the cable support?
Rated for 6.3/11kV, making it suitable for medium-voltage power distribution networks.
How does the AWA armour provide protection?
The steel wire armour layer safeguards against physical damage, rodent attacks, and environmental stress during installation and operation.
What benefits does the flame-retardant insulation offer?
Minimizes toxic gas emissions and smoke during fires, ensuring safer evacuation and reduced fire spread in confined spaces.
Can this cable be installed underground or overhead?
Yes, it is versatile for both underground burial and overhead installations, with the armour enhancing durability in exposed conditions.
What standards does this cable comply with?
Meets international medium-voltage cable standards, though specific certifications (e.g., IEC, CE) may vary by region.
How does the cable contribute to energy efficiency?
The aluminium conductor and XLPE insulation reduce energy loss during transmission, supporting stable performance under load.
What maintenance practices ensure longevity?
Regular inspections for armour integrity, avoiding overloading, and using certified accessories during termination help prolong service life.
